BridgeLink Quick Start Guide macOS

About This Guide

BridgeLink is Innovar Healthcare's integration platform. It moves messages between the systems in your organization and lets you build, run and watch those connections, called channels, from a web browser.

The steps here guide you through downloading, installing and running a BridgeLink 26.9.0 server on a Mac, managed in WebAdmin.

A Mac is suitable for evaluation, development and single-user work. For a production BridgeLink server, use Windows or Linux.

If you would like a hand with any part of the install, Innovar Healthcare's professional services team can help with as much or as little of it as you want.

What You Install

HTTPS is the encrypted form of a web connection.

Open port 8443 on the BridgeLink server to other machines only if WebAdmin runs on another machine or other programs call the BridgeLink API. Channels that listen for connections, such as MLLP or HTTP listeners, need their own ports opened. Port 8080 is BridgeLink's plain-HTTP port; nothing in this guide uses it, so keep it closed to other machines.

Decide These First

• Which database BridgeLink uses. Use your own external database, not the default Derby database. See Choosing and Connecting the Database.
• Which account runs BridgeLink in the background. Use a dedicated service account, never root. See The Service Account.

Requirements

• A Mac with Apple silicon. The BridgeLink macOS packages are built for Apple silicon only. Intel Macs are not supported.
• An administrator account on the Mac, to install software
• A Java runtime for Apple silicon. Before You Install in Installing BridgeLink says which version and builds to use.
• An external database with an empty database for BridgeLink
• For WebAdmin: Node.js 22, which the WebAdmin installer can install for you through Homebrew (a widely used tool for installing software on a Mac). Homebrew is not installed on a Mac by default; install it first from https://brew.sh.
• A current browser for WebAdmin: Chrome, Edge or Firefox 120 or later, or Safari 17 or later

Getting the Software

BridgeLink downloads are on the BridgeLink website. Customers with an Innovar Healthcare customer portal account can also download them from the portal.

1. Open https://www.bridgelink.net/download in a browser.
2. Select macOS.
3. Find the BridgeLink Server card and confirm it shows version 26.9.0.
4. Download the package you chose from the table below.

You do not need a separate WebAdmin download. Both packages put the WebAdmin installer, BridgeLink-WebAdmin-install.tar.gz, in the BridgeLink folder. You run it after BridgeLink is installed.

Installer or Archive

Neither package includes Java. Install Java first, as Before You Install in Installing BridgeLink describes.

Installing BridgeLink

The commands in this guide use /Applications/BridgeLink, the installer's default folder. If you install somewhere else, use your folder in every command.

Before You Install

Neither package includes Java, so install it first. BridgeLink needs a Java runtime for Apple silicon: Java 21 (recommended) or Java 17. Use an OpenJDK build such as Eclipse Temurin (from Adoptium), Amazon Corretto or Azul Zulu. Java 17 is also supported when BridgeLink uses an external database; the default Derby database needs Java 21. Do not install a Java newer than 21: BridgeLink 26.9 does not use one.

1. Install a Java 21 runtime, using the vendor's Apple silicon (aarch64) .pkg installer. With Homebrew, brew install --cask temurin@21 does the same. Do not use brew install openjdk: it installs the newest Java, which BridgeLink 26.9 does not use.
2. Open Terminal and list the Java runtimes installed on the Mac:

/usr/libexec/java_home -V

3. Look for a line that starts with 21., after its leading spaces. If no line starts with 21., Java 21 is not installed yet: install it as in step 1, then run the command again.

Installer (.dmg)

1. Double-click the downloaded BridgeLink_macos_26_9_0.dmg file. A window opens that shows BridgeLink Installer.
2. Double-click BridgeLink Installer.
3. macOS shows '"BridgeLink Installer" Not Opened'. This happens on every Mac, because the installer is not yet notarized by Apple. Click Done.
4. Open System Settings, then click Privacy & Security.
5. Scroll to Security and click Open Anyway beside the BridgeLink Installer message.
6. Click Open Anyway again in the dialog that appears.
7. Enter your administrator password when macOS asks. The installer opens. You do not need to open the .dmg again.
8. Keep the install folder, /Applications/BridgeLink. If the folder shows anything else, change it to /Applications/BridgeLink.
9. On BridgeLink Administrator Ports, keep Administrator Port at 8443 and Web Start Port at 8080.
10. On Install Plugins to BridgeLink, continue without adding any.

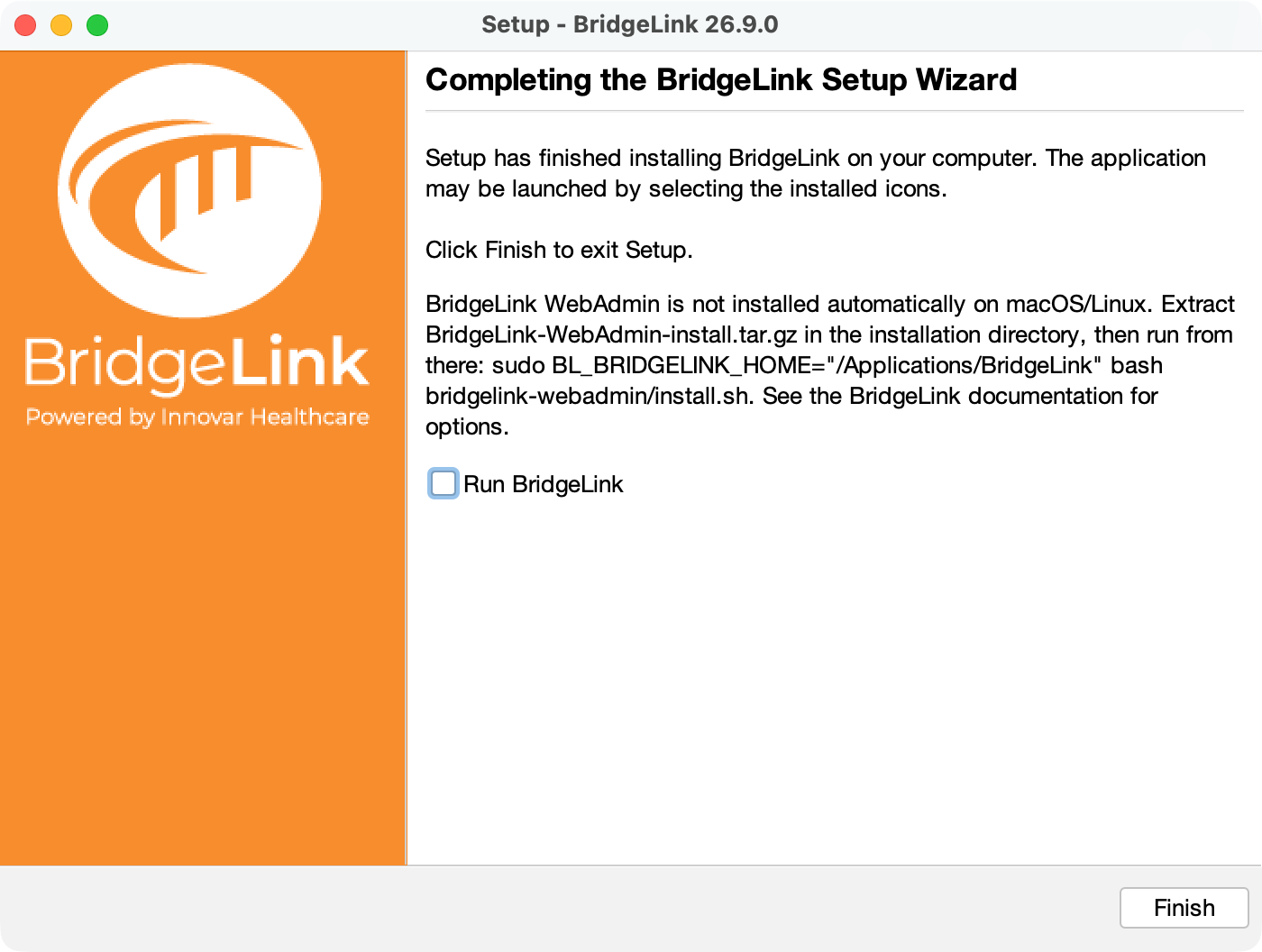

11. On the last screen, clear Run BridgeLink.
12. Click Finish.

Archive (.tgz)

1. In Terminal, extract the archive into /Applications. Safari's default setting, Open safe files after downloading, saves the file as BridgeLink_macos_26_9_0.tar, so the command uses that name. tar on macOS detects the compression by itself:

sudo tar -xf ~/Downloads/BridgeLink_macos_26_9_0.tar -C /Applications

If your browser kept the .tgz name, use BridgeLink_macos_26_9_0.tgz in the command instead.

2. Confirm the folder is /Applications/BridgeLink:

ls /Applications/BridgeLink

Whichever package you used, connect the database next. Do not start BridgeLink yet.

Choosing and Connecting the Database

Every BridgeLink server keeps its channels, messages, events, users and settings in one database. You choose which database in /Applications/BridgeLink/conf/mirth.properties, and you make that choice before BridgeLink starts for the first time.

Use an External Database, Not Derby

BridgeLink ships set to the default Derby database. Derby needs no setup, which makes it handy for a short test. Do not use it for a server you plan to keep:

• Requires Java 21. BridgeLink 26.9 will not start a server on the default Derby database with any Java older than 21. It stops at once and writes this line to logs/mirth.log: embedded Derby requires Java 21+ as of 26.9; upgrade Java or switch to an external database. No setting turns this check off.
• Runs inside BridgeLink. Derby lives in the same process as the server, so no other tool can open the database while BridgeLink runs, and backing it up means copying its files.
• Lacks features. The default Derby database does not support the JSON value type in Lookup Manager or regex search in Message Browser. SQL Server does not support regex search either.
• Sized for evaluation. For production message volumes, use PostgreSQL, MySQL, Microsoft SQL Server or Oracle.

Prepare the Database

1. On your database server, create an empty database for BridgeLink, for example bridgelinkdb.
2. Create a login for BridgeLink that owns that database and can create tables in it.

BridgeLink creates all of its tables the first time it starts. You do not run any scripts.

Point BridgeLink at the Database

1. In a Terminal window, open the settings file in a terminal text editor as an administrator:

sudo nano /Applications/BridgeLink/conf/mirth.properties

If you installed with the .dmg, you can edit the file in TextEdit or another plain-text editor, such as BBEdit or Visual Studio Code, instead. In Finder, choose Go > Go to Folder, type /Applications/BridgeLink/conf, and open mirth.properties. The folder still belongs to the account that ran the installer, so you do not need sudo yet. After the archive install the file belongs to root, so use sudo nano: TextEdit would save a copy that BridgeLink never reads.

2. Find the line database = derby and change derby to the value for your database from the table below.
3. Change the database.url line to your database's address, using the pattern in the table.
4. Set database.username to the BridgeLink login.
5. Set database.password to that login's password.
6. Save the file. In nano, press Control-O, then Return.
7. Close the editor. In nano, press Control-X.

Replace dbhost, the port and the database name (for Oracle, the service name or SID) with your own. A finished PostgreSQL example looks like this:

database = postgres
database.url = jdbc:postgresql://db01.example.org:5432/bridgelinkdb
database.username = bridgelink
database.password = your-password-here

Leave the other lines as they are for now. The https.port and http.port lines hold your ports, and the keystore lines are managed by BridgeLink.

The Service Account

To keep BridgeLink running after you sign out and start it when the Mac starts, run it as a LaunchDaemon, a background service that macOS manages. The daemon runs under one account, and that account decides what BridgeLink can reach.

Why Not Root

Channels can run scripts. If BridgeLink runs as root, any script in any channel has full control of the Mac. So BridgeLink refuses to start as root by default, and the log shows:

ERROR: BridgeLink is running as root/Administrator.

The setting behind this is server.allowRoot = false in conf/mirth.properties. Leave it set to false. A LaunchDaemon runs as root unless you name another account, so the file below names one.

Install as an Administrator, Run as the Service Account

You install BridgeLink with an administrator account: the installer asks for an administrator password, and the archive steps use sudo. After that, BridgeLink runs only as the service account this chapter creates, through the LaunchDaemon.

Do not start BridgeLink by typing ./blserver in Terminal as yourself. Any file it creates, such as a log, then belongs to your account, and the service account may not be able to write to it later. For a quick test, run it as the service account with sudo -u _bridgelink, as described in Create the LaunchDaemon. If you already ran it as yourself, run the commands in Give It the BridgeLink Folder again.

The service account needs:

• Ownership of the BridgeLink folder, because BridgeLink writes its logs, its appdata folder and conf/mirth.properties there
• Read and write access to any folders your channels read from or write to
• Network access to the database and to the systems your channels connect to

Create the Account

Run the commands in this chapter in a Terminal window.

Create a group for the service account first, so the account does not share the broad staff group:

sudo dseditgroup -o create -r "BridgeLink Service" -i 450 _bridgelink

Then create a hidden service account in that group. It has no password and cannot sign in to the Mac, which is what you want for a background service:

sudo sysadminctl -addUser _bridgelink -roleAccount -UID 450 -GID 450

This creates the group _bridgelink with group ID 450 and the account _bridgelink with user ID 450, with no home folder. sysadminctl requires the name of a role account (-roleAccount) to start with an underscore, and requires a user ID from 450 to 499.

If another account or group already uses ID 450, pick a different unused number from 450 to 499 and use it in both commands. These commands print the account and the group that have 450, or nothing if it is free:

dscl . -list /Users UniqueID | awk '$2 == 450'
dscl . -list /Groups PrimaryGroupID | awk '$2 == 450'

Check the account:

dscl . -read /Users/_bridgelink UserShell NFSHomeDirectory IsHidden

The output shows UserShell: /usr/bin/false, which means the account cannot start a shell or sign in. It also shows NFSHomeDirectory: /var/empty, macOS's placeholder for an account with no home folder, and dsAttrTypeNative:IsHidden: 1, which keeps the account out of the sign-in screen.

Give It the BridgeLink Folder

sudo chown -R _bridgelink:_bridgelink /Applications/BridgeLink
sudo chmod -R go-w /Applications/BridgeLink
sudo chmod 600 /Applications/BridgeLink/conf/mirth.properties

The first command makes the service account the owner. The second removes write access for everyone else. The third lets only the service account read the file that holds the database password.

When you finish this chapter, the BridgeLink files look like this:

WebAdmin's files are set up by its own installer. See What the WebAdmin Installer Sets Up in Installing WebAdmin.

Create the LaunchDaemon

1. Create the file /Library/LaunchDaemons/com.innovarhealthcare.bridgelink.plist:

sudo nano /Library/LaunchDaemons/com.innovarhealthcare.bridgelink.plist

2. Paste this content:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
  <key>Label</key>
  <string>com.innovarhealthcare.bridgelink</string>
  <key>UserName</key>
  <string>_bridgelink</string>
  <key>WorkingDirectory</key>
  <string>/Applications/BridgeLink</string>
  <key>ProgramArguments</key>
  <array>
    <string>/Applications/BridgeLink/blserver</string>
  </array>
  <key>RunAtLoad</key>
  <true/>
  <key>KeepAlive</key>
  <dict>
    <key>SuccessfulExit</key>
    <false/>
  </dict>
  <key>Umask</key>
  <integer>23</integer>
  <key>StandardOutPath</key>
  <string>/Applications/BridgeLink/logs/launchd-stdout.log</string>
  <key>StandardErrorPath</key>
  <string>/Applications/BridgeLink/logs/launchd-stderr.log</string>
</dict>
</plist>

3. Save and close the editor.
4. Check the file for typing mistakes. The command prints OK when the file is valid:

plutil -lint /Library/LaunchDaemons/com.innovarhealthcare.bridgelink.plist

5. Set the file's owner and permissions, which macOS requires for a LaunchDaemon:

sudo chown root:wheel \
  /Library/LaunchDaemons/com.innovarhealthcare.bridgelink.plist
sudo chmod 644 /Library/LaunchDaemons/com.innovarhealthcare.bridgelink.plist

The file runs blserver, BridgeLink's own launcher. It finds the Java 21 you installed and reads BridgeLink's Java options from /Applications/BridgeLink/blserver.vmoptions, so the file needs no Java path. Remove any Java newer than 21: with a newer Java installed, BridgeLink can fall back to an older Java such as 17 even when 21 is installed.

The KeepAlive setting with SuccessfulExit set to false makes macOS start BridgeLink again when it stops with an error. It does not restart BridgeLink after a clean stop, such as launchctl bootout. Because a failing BridgeLink keeps coming back, a running service does not prove that BridgeLink started. Starting BridgeLink for the First Time shows the check to use.

The Umask value 23 is the decimal form of 027. It keeps the files BridgeLink creates, such as its logs, unreadable by accounts other than the owner and its group.

Do not load it yet. Starting BridgeLink for the First Time does that.

To run BridgeLink by hand as the service account, for a quick test, use sudo -u _bridgelink, not su. The account cannot sign in on purpose, so su - _bridgelink always fails.

Check Which Account BridgeLink Runs As

After BridgeLink starts, confirm it is running as the service account:

ps -o user,pid,command -ax | grep "[m]irth-server-launcher"

The first column is the account. It should read _bridgelink.

Do not use lsof for this check. Without sudo, lsof lists only your own processes, so it shows nothing for a BridgeLink server running as another account, even while that server is working normally.

Changing the Account After Install

If BridgeLink runs as one account and you switch it to another, the files BridgeLink writes still belong to the old account. The new account cannot write its logs, its keystore or its settings, and BridgeLink fails with Permission denied errors.

First, create the new account if it does not exist yet, the same way as in Create the Account above, with its own name, its own group and an unused ID. Then:

1. Stop BridgeLink:

sudo launchctl bootout system/com.innovarhealthcare.bridgelink

2. Open the daemon file and change the UserName value to the new account:

sudo nano /Library/LaunchDaemons/com.innovarhealthcare.bridgelink.plist

3. Give the new account the BridgeLink folder:

sudo chown -R newaccount:newaccount /Applications/BridgeLink
sudo chmod -R go-w /Applications/BridgeLink
sudo chmod 600 /Applications/BridgeLink/conf/mirth.properties

4. Give the new account the same access to any folders your channels use.
5. Start BridgeLink again:

sudo launchctl bootstrap system \
  /Library/LaunchDaemons/com.innovarhealthcare.bridgelink.plist

6. Check the account with the ps command above.

Starting BridgeLink for the First Time

1. Load the LaunchDaemon, which starts BridgeLink now and at every restart:

sudo launchctl bootstrap system \
  /Library/LaunchDaemons/com.innovarhealthcare.bridgelink.plist

2. Wait about a minute.
3. Check that the BridgeLink web server started. The log files are not readable by every account, so use sudo:

sudo grep 'Web server running at' \
  /Applications/BridgeLink/logs/mirth.log | tail -1

4. Confirm the command printed a line, and that the time on it is after the start you just made. That line is the sign that BridgeLink started. If nothing prints, or the newest line is from an earlier start, BridgeLink did not start. See Troubleshooting.
5. Find the newest line that contains Running, to check the database name and Java version:

sudo grep 'Running ' /Applications/BridgeLink/logs/mirth.log | tail -1

6. Confirm the line names your database, not derby. It also names the Java version, which should be 21.
7. Confirm BridgeLink runs as _bridgelink, using the ps check in The Service Account.

Do not rely on launchctl print showing state = running. macOS restarts BridgeLink when it fails, so the service can show as running while BridgeLink keeps failing. The Running line alone is not enough either: it can appear even when the web server did not start. After you fix a failure and BridgeLink starts, launchctl print can still show last exit code = 1. That leftover value means nothing once the Web server running at line appears.

To restart BridgeLink later, run sudo launchctl kickstart -k system/com.innovarhealthcare.bridgelink.

On this first start, BridgeLink:

• Creates its tables in your database
• Creates a keystore holding a new self-signed certificate for port 8443, and writes new keystore passwords into conf/mirth.properties

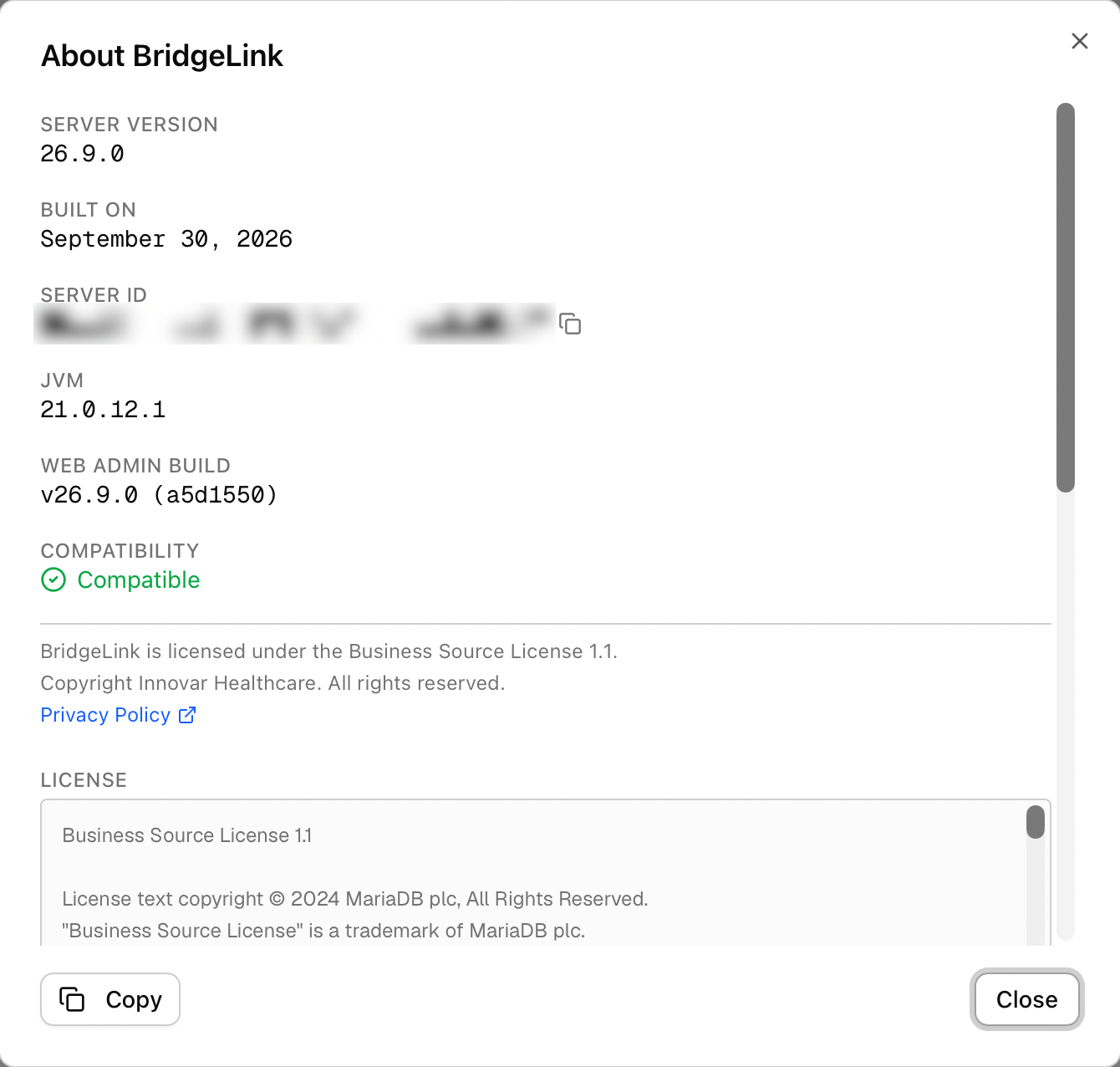

• Creates the appdata/server.id file that holds this server's unique ID

If BridgeLink stops right away, see Troubleshooting.

Memory for the BridgeLink Server

BridgeLink starts with a 256 MB Java heap, which is enough for a personal or test install but small for production. The -Xmx256m line in /Applications/BridgeLink/blserver.vmoptions sets it. For heavier use, size it to the message volume and leave memory for macOS and the database.

To change it:

1. Open the file as an administrator:

sudo nano /Applications/BridgeLink/blserver.vmoptions

2. Change the -Xmx256m line, for example to -Xmx1g.
3. Save the file and close the editor.
4. Restart BridgeLink:

sudo launchctl kickstart -k system/com.innovarhealthcare.bridgelink

Installing WebAdmin

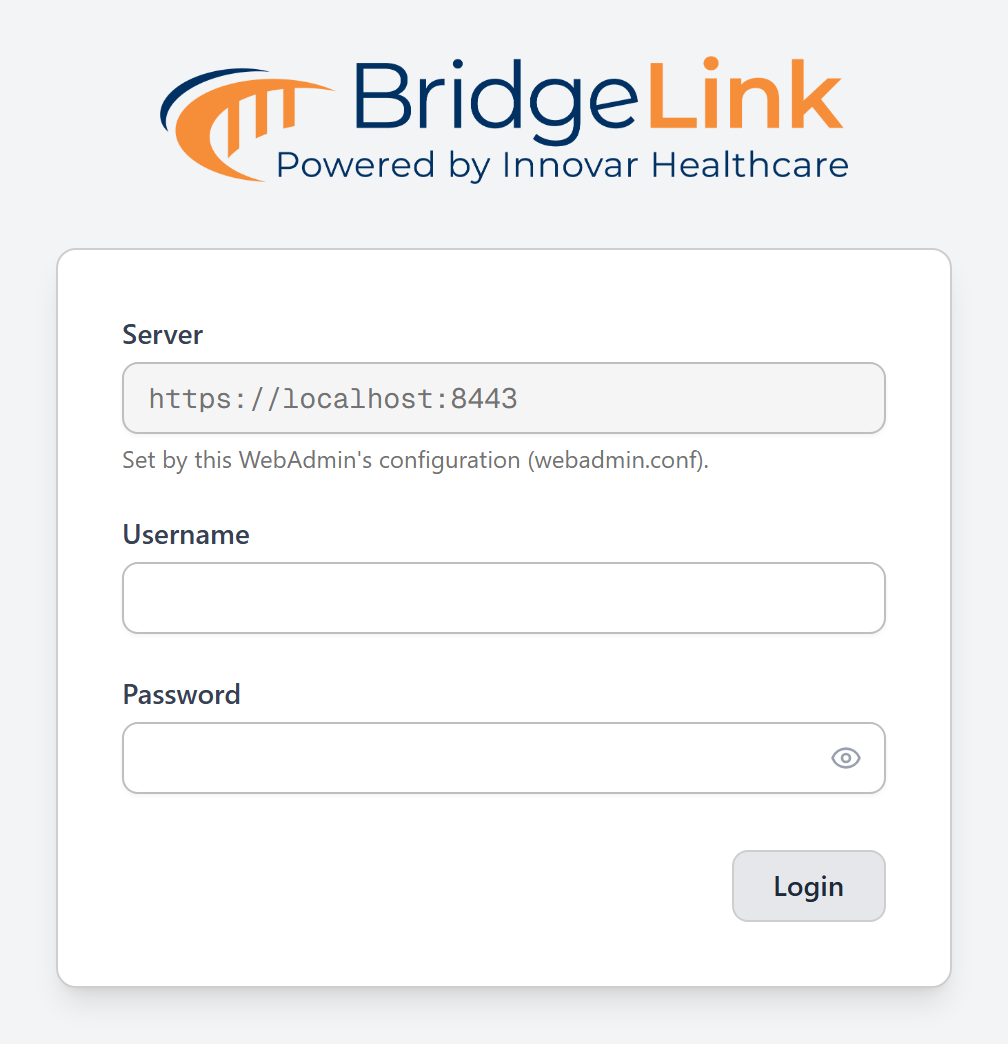

WebAdmin is the browser-based tool you use to manage BridgeLink. It runs as its own small service, next to BridgeLink. WebAdmin is a small web application run by Node.js: it serves the pages you see in the browser and passes each request on to BridgeLink. It contains no Java.

On macOS, WebAdmin is a separate step with its own installer. You run it after BridgeLink is installed, from the BridgeLink-WebAdmin-install.tar.gz archive in the BridgeLink folder. The installer's last screen points to it too.

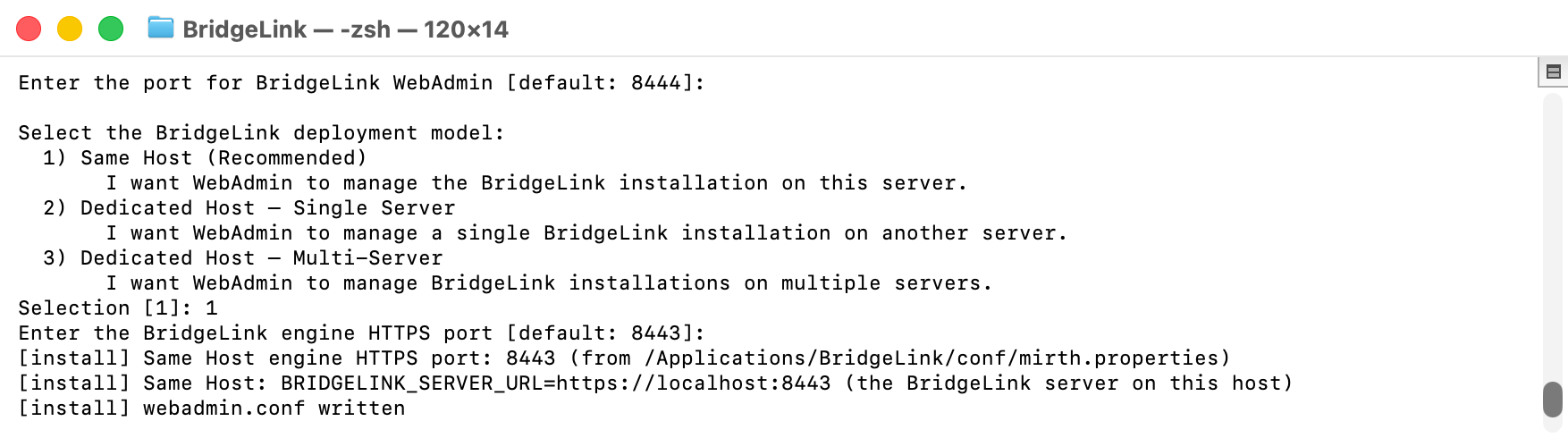

Run the WebAdmin Installer

1. In Terminal, go to the BridgeLink folder:

cd /Applications/BridgeLink

2. Extract the WebAdmin archive there. It creates a bridgelink-webadmin folder:

sudo tar -xzf BridgeLink-WebAdmin-install.tar.gz

3. Run the installer from the BridgeLink folder, telling it where BridgeLink is so Same Host (Recommended) can find BridgeLink's port:

sudo BL_BRIDGELINK_HOME=/Applications/BridgeLink \
  bash bridgelink-webadmin/install.sh

To use a Node.js 22 you already have through Homebrew (node@22), run this command instead:

sudo BL_BRIDGELINK_HOME=/Applications/BridgeLink \
  NODEJS_HOME="$(brew --prefix node@22)" \
  bash bridgelink-webadmin/install.sh

If your Node.js 22 is not Homebrew's node@22, set NODEJS_HOME to the folder that contains your Node.js 22's bin/node, for example ~/.nvm/versions/node/v22.x.y, instead of "$(brew --prefix node@22)".

4. Read the license terms it points to, LICENSE and SUPPLEMENTAL-TERMS.txt.
5. At Do you accept the license terms? [y/N]:, type y.
6. If the installer shows Choose an option: for Node.js, press Return to choose 1) Install Node.js 22 now.
7. Confirm any prompt macOS shows.
8. At Enter the port for BridgeLink WebAdmin [default: 8444]:, press Return.
9. At Select the BridgeLink deployment model:, type 1 for Same Host (Recommended).
10. At Enter the BridgeLink engine HTTPS port [default: 8443]:, press Return, unless you changed BridgeLink's HTTPS port. If you did, type that port.

While it creates the self-signed certificate, the installer prints a long run of .+...+++* characters. This is normal. Wait for it to finish.

The installer:

• Copies WebAdmin to /opt/bridgelink-webadmin and writes /opt/bridgelink-webadmin/webadmin.conf
• Creates a self-signed certificate for WebAdmin at /opt/bridgelink-webadmin/cert.pem and key.pem
• Installs and loads the LaunchDaemon com.innovar.bridgelink-webadmin, which starts at boot and restarts if it stops
• Installs the blwebadmin command for day-to-day control: blwebadmin status, sudo blwebadmin restart, blwebadmin logs

blwebadmin status prints about 60 lines of launchctl print output. The line to look for is state = running.

What the WebAdmin Installer Sets Up

The WebAdmin service runs as root, and everything the installer creates belongs to root, so stopping or restarting WebAdmin takes sudo. macOS restarts WebAdmin whenever it stops, so control it only with sudo blwebadmin restart, sudo blwebadmin stop and sudo blwebadmin start. Do not run start-service.sh yourself: a second copy cannot use port 8444 and fails with EADDRINUSE.

Errors go to /var/log/bridgelink-webadmin.err, not to the .log file that blwebadmin logs follows:

sudo tail -40 /var/log/bridgelink-webadmin.err

The BridgeLink WebAdmin Setup Guide lists every file the installer creates, with its owner and permissions, and the log lines that are normal.

Sign In for the First Time

1. Open https://localhost:8444 in a browser.
2. If the browser shows a certificate warning, click Advanced, then Proceed to ... (unsafe) in Chrome or Continue to ... (unsafe) in Edge. In Firefox, click Advanced, then Accept the Risk and Continue. In Safari, click Show Details, click visit this website, then click Visit Website in the confirmation dialog. Read the note after this step.

3. In Username, type admin.
4. In Password, type admin.
5. Click Login.
6. On Welcome to BridgeLink, leave Username as admin.
7. In New Password, type a new password of at least 8 characters, with an uppercase letter, a lowercase letter, a number, and a special character such as !, @, #, $, % or *. A hyphen, period or space does not count as a special character, and the password cannot be admin. WebAdmin lists only the rules that admin breaks, so check your password against all of these.
8. Type it again in Confirm Password.
9. The profile fields on Welcome to BridgeLink are optional; fill them in if you want to.
10. Click Save & Continue.

With Same Host (Recommended), the Server field is filled in and cannot be changed: WebAdmin talks only to the BridgeLink server on this Mac, at localhost. To point it somewhere else, change BRIDGELINK_SERVER_URL in /opt/bridgelink-webadmin/webadmin.conf and run sudo blwebadmin restart.

More WebAdmin Setups

For WebAdmin on another machine, one WebAdmin for several servers, your own certificate, and every setting, see the BridgeLink WebAdmin Setup Guide on the BridgeLink download page, https://www.bridgelink.net/download.

Finding the Server ID

Every BridgeLink server has a unique server ID, created the first time it starts. Plugin licenses are issued against this ID, so Innovar Healthcare asks for it when you license a plugin.

In WebAdmin

1. Sign in to WebAdmin.
2. In the left sidebar, scroll to the bottom and, under Help, click About BridgeLink.

If Update Available opens instead, click Got it, then click About BridgeLink again.

3. Click the copy icon beside Server ID.

On Disk

The same ID is in /Applications/BridgeLink/appdata/server.id, on a line that reads server.id = followed by the ID:

sudo cat /Applications/BridgeLink/appdata/server.id

Back up /Applications/BridgeLink/appdata/server.id, /Applications/BridgeLink/appdata/keystore.jks and /Applications/BridgeLink/conf/mirth.properties together. The keystore holds the key BridgeLink uses to encrypt data, and mirth.properties holds the keystore's passwords. If you rebuild the Mac and put server.id back, owned by the service account, before BridgeLink first starts, the server keeps its ID and its plugin licenses. Without the file, BridgeLink creates a new ID.

Replacing the Certificates

A new install uses two self-signed certificates (certificates the server creates for itself, which browsers do not trust), which is why browsers warn the first time. If other users will connect to this Mac, replace them with certificates from your organization's certificate authority (CA).

Replace the WebAdmin Certificate

Before you replace WebAdmin's certificate, read When a browser stops letting you click through under Sign In for the First Time in Installing WebAdmin.

You need the certificate and its private key as PEM files (text files that begin with -----BEGIN). Put any intermediate certificates in the certificate file after the server certificate. The private key file must not have a password.

1. Stop WebAdmin:

sudo blwebadmin stop

2. Keep copies of the current files:

sudo cp /opt/bridgelink-webadmin/cert.pem /opt/bridgelink-webadmin/cert.pem.bak
sudo cp /opt/bridgelink-webadmin/key.pem /opt/bridgelink-webadmin/key.pem.bak

3. Copy your certificate over cert.pem:

sudo cp your-certificate.pem /opt/bridgelink-webadmin/cert.pem

4. Copy your private key over key.pem:

sudo cp your-private-key.pem /opt/bridgelink-webadmin/key.pem

5. Start WebAdmin:

sudo blwebadmin start

6. Open WebAdmin in a browser and confirm there is no certificate warning.

To Undo the Swap

If browsers cannot open WebAdmin after the swap, put the old certificate back:

1. Stop WebAdmin:

sudo blwebadmin stop

2. Copy the two .bak files back:

sudo cp /opt/bridgelink-webadmin/cert.pem.bak /opt/bridgelink-webadmin/cert.pem
sudo cp /opt/bridgelink-webadmin/key.pem.bak /opt/bridgelink-webadmin/key.pem

3. Start WebAdmin:

sudo blwebadmin start

Browsers that opened WebAdmin by its server name with the new certificate refuse the old self-signed one. Fix the new certificate instead, or clear the browser's HSTS entry for the server name: open chrome://net-internals/#hsts in Chrome or edge://net-internals/#hsts in Edge, and use Delete domain security policies. In other browsers, clear the browsing data for that server name.

Replace the BridgeLink Server Certificate

BridgeLink keeps its certificate in a keystore file under the name mirthconnect. The same keystore also holds the key BridgeLink uses to encrypt data, so replace only the mirthconnect entry. Never swap in a different keystore file.

You need the certificate and private key as a PKCS12 file (a single file, ending in .p12 or .pfx, that bundles a certificate with its private key) and its password. The commands use keytool, which comes with Java.

Steps 5 and 6 use the values in this table:

1. Stop BridgeLink:

sudo launchctl bootout system/com.innovarhealthcare.bridgelink

2. Back up the keystore:

sudo cp /Applications/BridgeLink/appdata/keystore.jks ~/keystore.jks.bak
sudo chmod 600 ~/keystore.jks.bak

3. Note the values of keystore.storepass and keystore.keypass. You use them in steps 5 and 6:

sudo grep '^keystore\.' /Applications/BridgeLink/conf/mirth.properties

4. List the entry name inside your PKCS12 file:

keytool -list -keystore server.p12 -storetype PKCS12

5. Remove the old certificate entry. Replace <your keystore.storepass value> with the keystore.storepass value that step 3 showed. Do this step before step 6:

sudo keytool -delete -alias mirthconnect \
  -keystore /Applications/BridgeLink/appdata/keystore.jks \
  -storetype JCEKS -storepass <your keystore.storepass value>

6. Import yours as mirthconnect. Replace the placeholders with your own values:

sudo keytool -importkeystore \
  -srckeystore server.p12 -srcstoretype PKCS12 \
  -srcstorepass <your .p12 file password> \
  -srcalias <the entry name from step 4> \
  -destkeystore /Applications/BridgeLink/appdata/keystore.jks \
  -deststoretype JCEKS \
  -deststorepass <your keystore.storepass value> \
  -destalias mirthconnect \
  -destkeypass <your keystore.keypass value>

Steps 5 and 6 print a warning that recommends migrating the keystore to PKCS12. Ignore it: BridgeLink reads the keystore as JCEKS, so do not convert it.

7. Give the keystore back to the service account:

sudo chown _bridgelink:_bridgelink /Applications/BridgeLink/appdata/keystore.jks

8. Start BridgeLink:

sudo launchctl bootstrap system \
  /Library/LaunchDaemons/com.innovarhealthcare.bridgelink.plist

9. Open https://localhost:8443 in a browser and confirm the browser shows your certificate.

If BridgeLink does not start, or port 8443 does not answer: stop BridgeLink, run sudo cp ~/keystore.jks.bak /Applications/BridgeLink/appdata/keystore.jks, repeat the chown from step 7, and start BridgeLink.

WebAdmin keeps working through the change, with no change to its own settings.

The Data Pruner

BridgeLink keeps the messages each channel processes until the Data Pruner removes them. The Data Pruner is off on a new server, so turn it on before you send real traffic through BridgeLink; otherwise the database grows with every message.

It has two parts, and both have to be set:

• The schedule, for the whole server: in WebAdmin, in the left sidebar under Administration, click Settings, then the Data Pruner tab
• How long each channel keeps messages: on each channel's Summary tab, under Message Pruning. A channel whose pruning fields are blank is never pruned, even when the schedule is on.

Choose ages that match your organization's record-keeping rules.

Turn On the Schedule

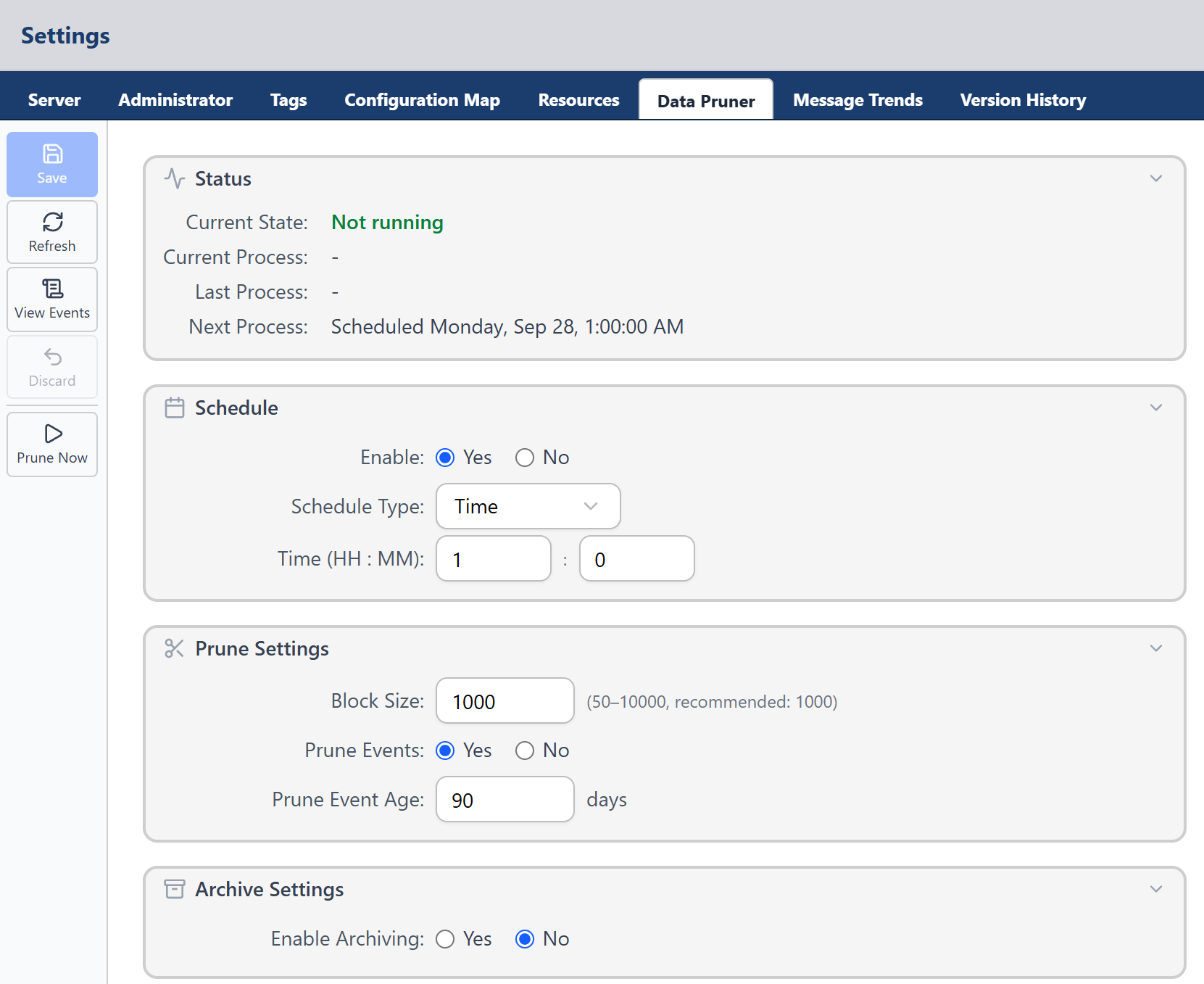

1. In WebAdmin, in the left sidebar under Administration, click Settings.
2. Click the Data Pruner tab.
3. Under Schedule, set Enable to Yes.
4. Choose a Schedule Type and set when it runs: Interval runs every set number of hours or minutes, Time runs once a day, and Cron takes cron expressions. Once a day at a quiet hour suits most servers.
5. Click Save.

Set How Long Each Channel Keeps Messages

1. In the left sidebar under Build, click Channels.
2. Double-click the channel to open it in the channel editor.

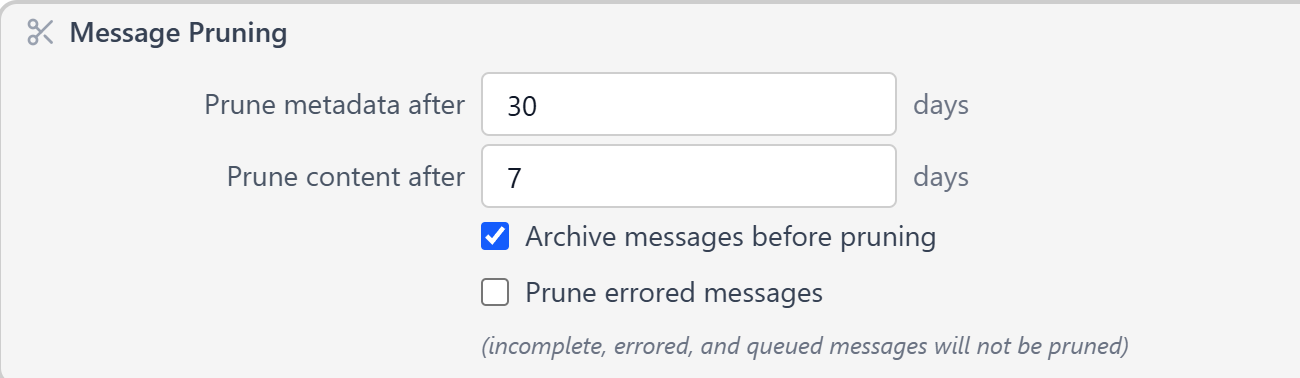

3. On the Summary tab, under Message Pruning, enter the number of days in Prune metadata after and Prune content after. Content cannot be kept longer than metadata.
4. Click Save.
5. Repeat for each channel.

Incomplete and queued messages are never pruned. Errored messages are kept too, unless you check Prune errored messages.

Troubleshooting

For more WebAdmin problems, see Troubleshooting in the BridgeLink WebAdmin Setup Guide.

Support

Customers with an active Innovar Healthcare support plan can contact support at support@innovarhealthcare.com. Include the BridgeLink version, the package you installed, your macOS version, what you were doing, and the most recent part of logs/mirth.log. mirth.log can contain message content, which may include patient data. Remove patient data before you send a log, or ask support for a secure way to send it.
